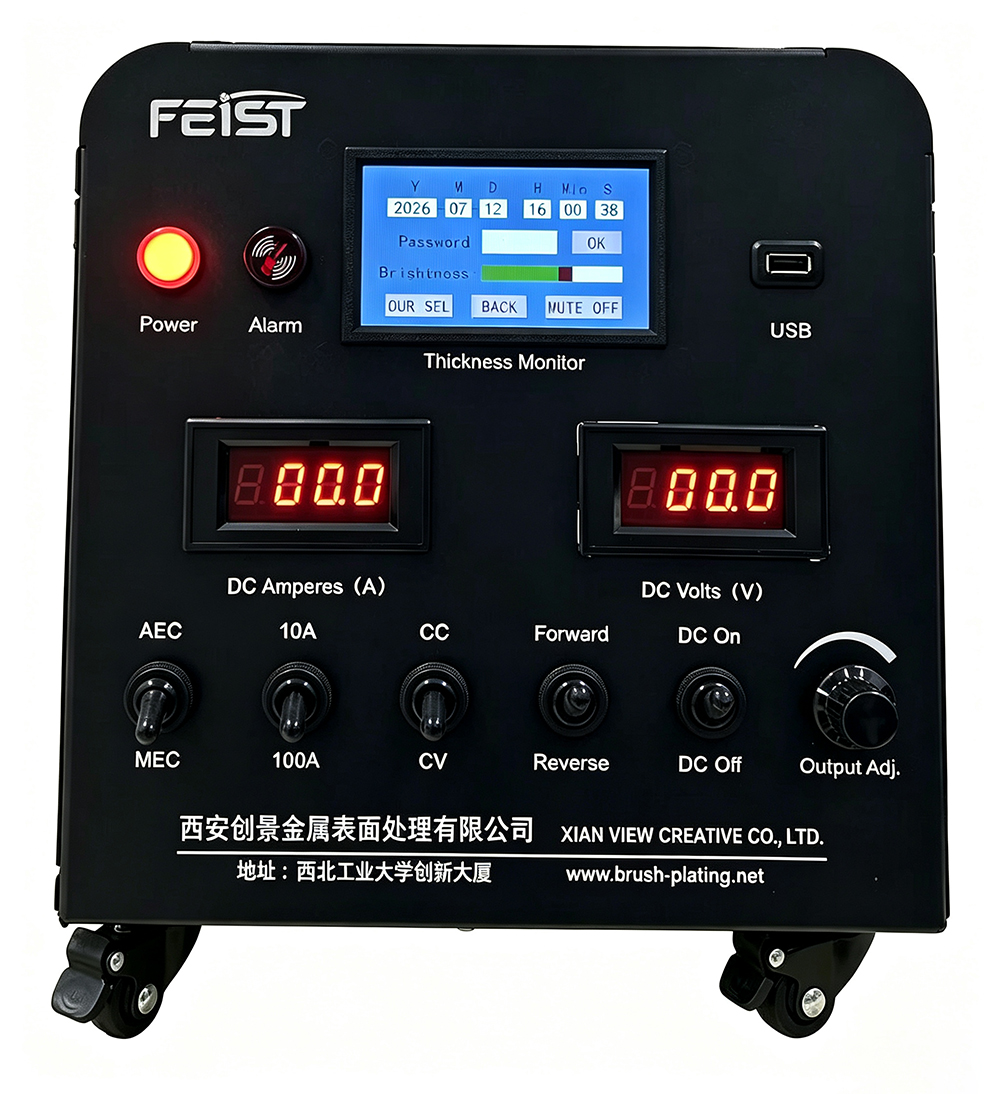

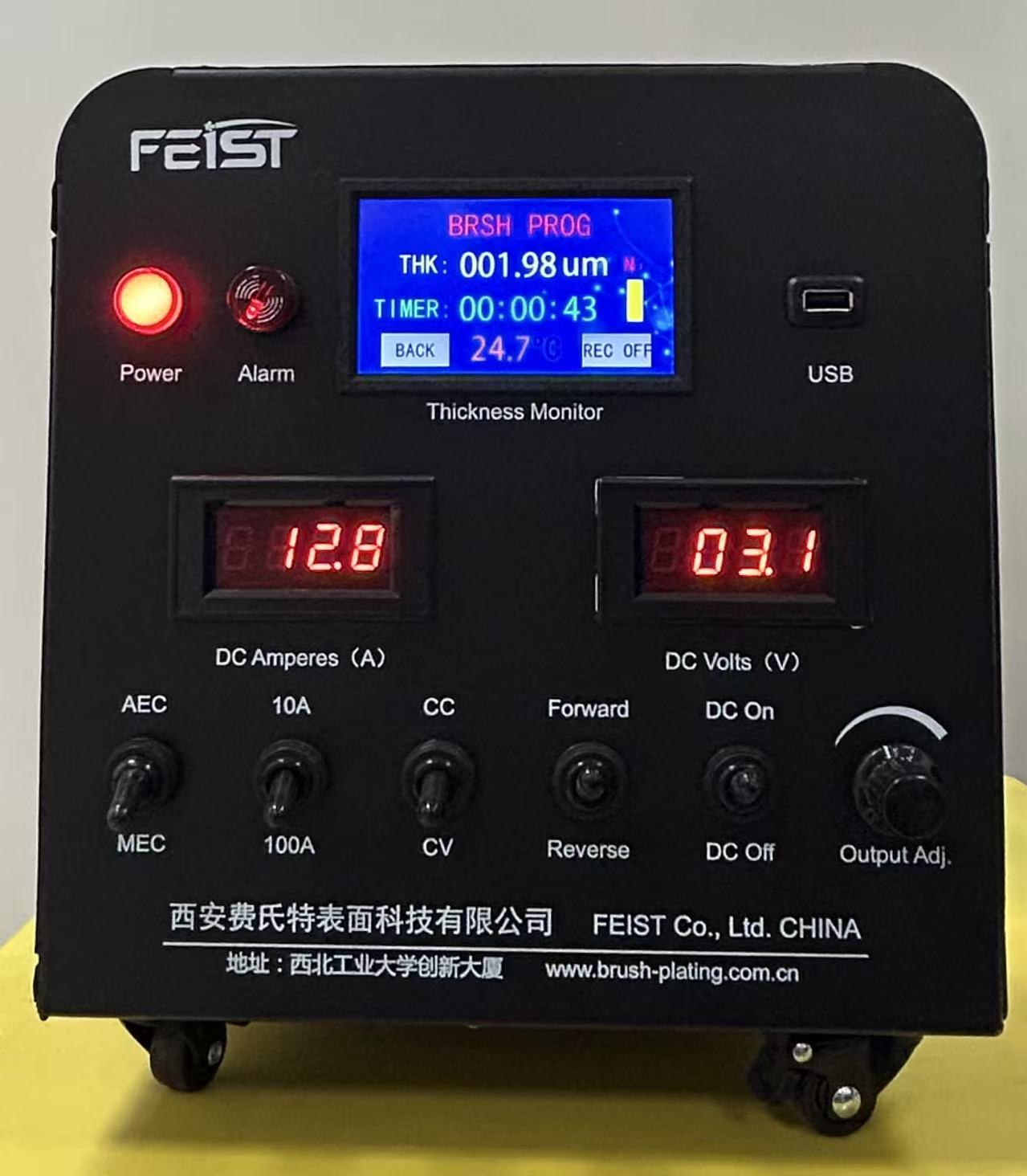

Intelligent selective electroplating Machine with Coating Thickness Display
  • Intelligent selective electroplating Machine with Coating Thickness Display
  • Intelligent Brush Plating Machine rectifier
  • Intelligent Brush Plating Machine with Coating Thickness Display
  • Back of selective electroplating machine

100A/30V Intelligent selective electroplating machine/rectifier

Applications Local Metal Defect Repair: Used for brush plating nickel, copper, nickel-cobalt alloy, etc., to repair local defects on printing machine rollers, hydraulic cylinders, and paper machine dryer cylinders. Repair of Bearing Seat Wear: Brush plating nickel is adopted to repair mechanical processing dimensional deviation and the wear of motor shafts.
Price：Send email for price
Selective Electroplating power supply

Moduel: ZNS30V100A
Input :110V/220V ,single phase.  Output：0-30V,0-100A
This is an intelligent brush electroplating machine. Main Features:
1. It supports selection of different plating metals and displays the plating thickness.
2. It is equipped with temperature control for plating solution heating.
3. It features a built-in timer to track the duration of brush plating operations.
4. A USB flash drive slot is available to record all parameters generated during plating, which allows precise control of the brush plating process.
IGBT: IGBTs achieve precise output of high-energy pulses through rapid switching, reducing device power consumption by 10%.
Thickness measurement: The device supports real-time Thickness measurement
Forward and Reverse Switching: Flexibly switch the direction of current output.
Cooling: Built-in Fan, Air Cooling
Control System: Intelligent monitoring panel with fault diagnostics
Self-Protection Features:Equipped with self-protection functions under abnormal conditions such as undervoltage, overvoltage, phase loss, internal overheating, output overload, current limiting, output short circuit, and alarm; equipped with an acousto-optic alarm that flashes and beeps when a fault occurs for immediate fault detection
